Automatic Sachet Honey Tomato Paste Ketchup Sauce Liquid Juice Milk Drinking Water Food Liquid Filling Packing Machine

Model NO. : K-181BAN

Forming Function : Forming, Filling, Seal

Driven Type : Mechanical

Material Type : Liquid

Packaging : Bag

Packaging Material : Film

Condition : New

Machine Material : 304# Stainless Steel Frame

Advantage : Easy Operation High Efficiency

Machine Name : Paste Packing Machine

Packing Speed : 30~100bags/Min

Bag Size : W:30~90mm;L:40~90mm/80~150mm

Measuring Range : 0.5~100g

Power Specifications : 4.5kw/380V

Keyword : Packing Equipment

Material : Ssl304

Control System : PLC+Touch Screen

Weight : 450kg

Bag Type : 3/4 Sides Sealing

Transport Package : Stretch Film with Plywood Packing

Specification : 1500*1000*1800mm

Trademark : KUNSHIDA

Origin : Guangdong, China

HS Code : 8422303090

Supply Ability : 500pieces/Year

After-sales Service : 1 Year

Warranty : 1 Year

Automatic Grade : Automatic

Application : Cleaning, Detergent, Cosmetics, Drinks, Skin Care Products, Hair Care Products, Oil, Snack, Seasoning, Tomato Paste Ketchup Sauce Liquid Juice

Type : Filling Forming Weighing Sealing

Forming Species : Bag Making

Customization : Available | Customized Request

Contact Now

Product Description

Company Info.

Customer Question & Answer
Ask something for more details

Basic Info.

Model NO.
K-181BAN
Forming Function
Forming, Filling, Seal
Driven Type
Mechanical
Material Type
Liquid
Packaging
Bag
Packaging Material
Film
Condition
New
Machine Material
304# Stainless Steel Frame
Advantage
Easy Operation High Efficiency
Machine Name
Paste Packing Machine
Packing Speed
30~100bags/Min
Bag Size
W:30~90mm;L:40~90mm/80~150mm
Measuring Range
0.5~100g
Power Specifications
4.5kw/380V
Keyword
Packing Equipment
Material
Ssl304
Control System
PLC+Touch Screen
Weight
450kg
Bag Type
3/4 Sides Sealing
Transport Package
Stretch Film with Plywood Packing
Specification
1500*1000*1800mm
Trademark
KUNSHIDA
Origin
Guangdong, China
HS Code
8422303090
Production Capacity
500pieces/Year

Product Description

Automatic Sachet Honey Tomato Paste Ketchup Sauce Liquid Juice Milk Drinking Water Food Liquid Filling Packing Machine

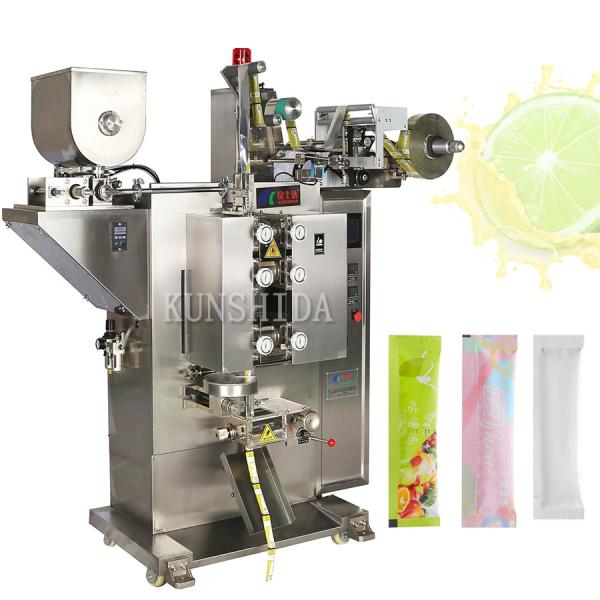

K-181BAN liquid packaging machine ( three/four sides sealing for liquid)
This machine is suitable for packaging liquid products, such as Honey,Ketchup,Sauce,Liquid,Juice,Oil,Peanut Butter,Jam,Cream,Salad,Soup,Tomato Paste and so on.
Our machine are widely using in food, beverage, condiments, medicine, daily chemical and hardware industry. Applicable to packing puffing snacks, granules, tea, toys, powder, liquid, sauce, paste, cream and so on.
Machine characteristics:
1. Controlled by PLC system.
2. Combines servo system and inverter system, to complete the
synchronous running of fifilm sending, roller driving and
materials feeding.
3. High-speed running up to 100 bags /min.
4. The bag sealing is smooth and drip-proof.
5. Optional sealing shape: diamond seal, linear seal, Matrix seal.
6. Optional cutting type: flflat cutting, wave/ Zigzag cutting, dot cutting.
Automatic Sachet Honey Tomato Paste Ketchup Sauce Liquid Juice Milk Drinking Water Food Liquid Filling Packing MachineTechnical parameters:
pouch sizeW:30~90mm;L:40~90mm/80~150mm
sealing type3/4 sides sealing
filling capacity0.5~100g
packing speed50~100bags/min
applicable filmPET/AL/PE.PET/PE etc
power4.5KW/380V
gross weight450KG
machine size1200*1000*1800mm

Automatic Sachet Honey Tomato Paste Ketchup Sauce Liquid Juice Milk Drinking Water Food Liquid Filling Packing Machine
Automatic Sachet Honey Tomato Paste Ketchup Sauce Liquid Juice Milk Drinking Water Food Liquid Filling Packing MachineAutomatic Sachet Honey Tomato Paste Ketchup Sauce Liquid Juice Milk Drinking Water Food Liquid Filling Packing MachineAutomatic Sachet Honey Tomato Paste Ketchup Sauce Liquid Juice Milk Drinking Water Food Liquid Filling Packing MachineAutomatic Sachet Honey Tomato Paste Ketchup Sauce Liquid Juice Milk Drinking Water Food Liquid Filling Packing MachineAutomatic Sachet Honey Tomato Paste Ketchup Sauce Liquid Juice Milk Drinking Water Food Liquid Filling Packing MachineFAQ:Q1:Can your machine meet our needs well?
A1:After receiving your inquiry, we will confirm your pack weight , pack speed, pack size,And then give you the proposal according to your specific requirement. Every machine is customized to meet your needs well.
Q2:Are you factory or trading company?
A2:We are the factory, have more than 15 years experience.
Q3:How can we make sure about the machine quality after we put the order?
A3:Before delivery, we will send you the pictures and videos for you to check the quality.
Q4:What is your terms of packing?
A4:Generally, we pack our goods in plastic film + export plywood case.
